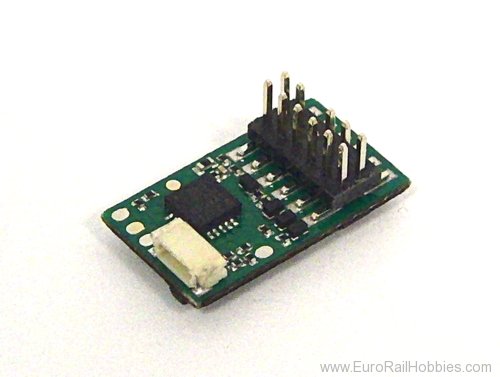

The PIKO SmartDecoder 4.1 PluX12 is a universal digital decoder of the latest generation with multiple light outputs and a 0.8 A motor control. The PIKO SmartDecoder 4.1 masters the data formats DCC with Rail-ComPlus®, Motorola® and Selectrix® and can also be used on analog systems. The decoder recognizes the respective operating mode automatically.
Features
• Fully automatic mode recognition • DCC, MM, Selectrix®, DC and AC modes • Motor current duration 0.8 A • Motor peak current 2.0 A • Total current function outputs 0.4 A • 2 additional special function outputs • MicroSUSI • Programmable motor characteristic curve • Braking distance modes • Short-circuit and over-temperature protection • Dimensions: 15 x 8.6 x 3.9 mm
