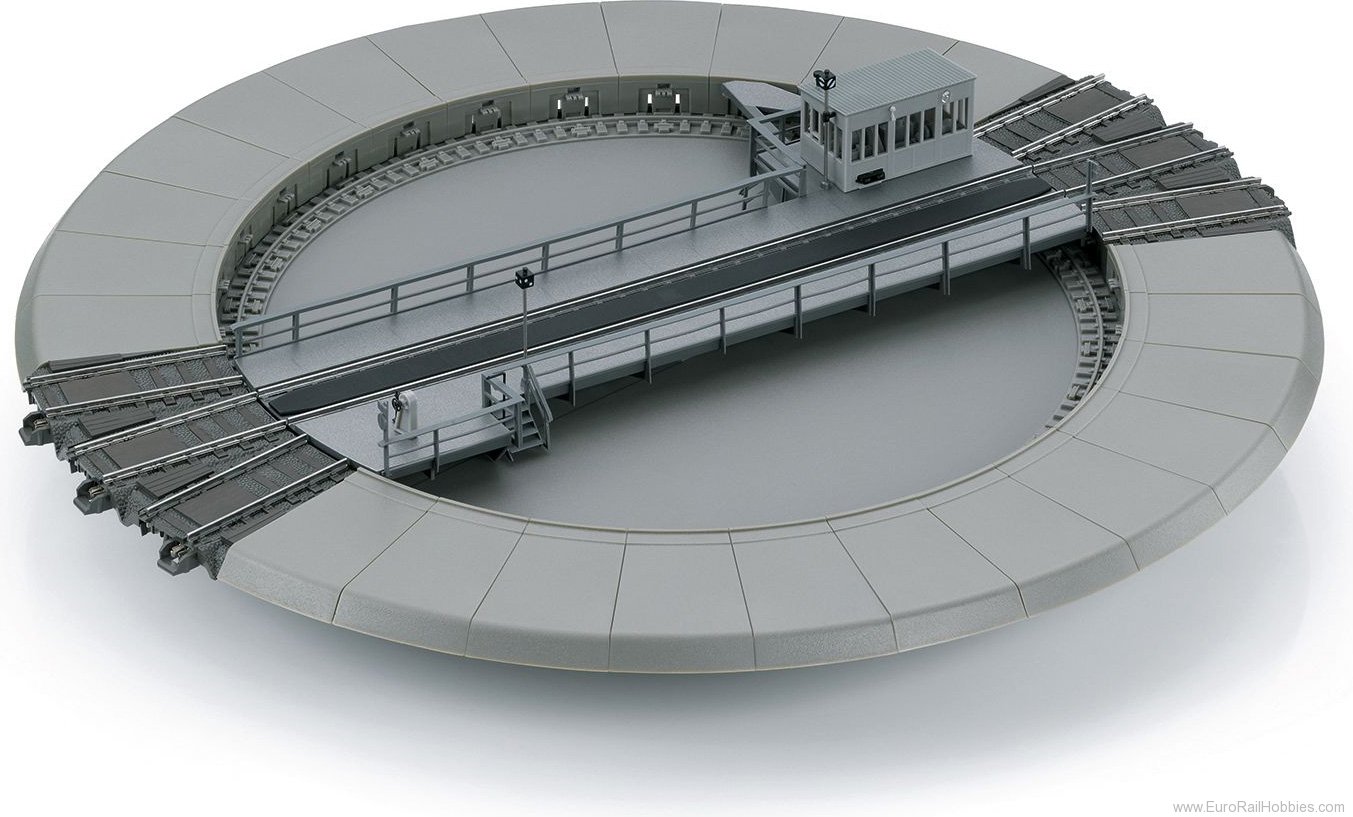

This is a DB standard design 23 meter / 74 foot 9 inch turntable. It is designed for conventional and digital locomotive operation. The remote controlled deck has a built-in motor. It can only be controlled digitally with the Mobile Station 2 and Central-Station 2 and 3 (not included). Control with the Central-Station 2 and 3 is especially easy by means of track indexing (after carrying out an update), or with different digital central controllers that use the DCC digital format. Function: The deck turns right/left and the pit is designed for sunken installation on the layout. 6 track spoke connections for C Track are included for insertion at the location of your choice. The spoke angles are in the C Track grid spacing of 12°. A maximum of 30 track spoke connections in the spacing of 12° can be done with the 66871 expansion set. Polarity change can be programmed. The external diameter of the turntable with one each spoke track opposite each other is 378 mm / 15-1/32". The diameter of the pit without spoke tracks is 278 mm / 10-15/16". The deck length is 263 mm / 10-3/8". This turntable can be used with the 72886 roundhouse locomotive shed. Various sound functions can be controlled. LEDs are used to light the turntable operator's hut and the outside lighting and they can be controlled.
Trix C Track is the ideal track for fast setup of a track pattern on a table or on the floor. The low resistance click connection on the ends of the track has especially reliable contact and is especially conductive. The connections are designed to be mechanically very precise and display a high level of their own stability in track sections put together. The running and operating current for a model railroad can be fed to the layout everywhere. The feeder wires are connected to the track using spade connectors at the contact tongues present in each section of track. This results in flexibility for all kinds of model railroad track lines. A track system, which allows constantly new operating adventures on constantly new rail lines!
If you already have a "two-rail" layout, you can benefit from Trix C Track: Use this elegant roadbed track for any expansion. You use the adapter track (62951) for the transitions in the existing area. It allows connections between Trix C Track and conventional Code 83 track.
The low rail profile for Trix C Track is 2.07 mm high and thereby fulfills the standard for Code 83. All H0 locomotives and cars with wheel flanges designed for NEM will run here – and that is practically all new models offered in the last two decades for two-rail systems by various manufacturers! This track thereby contributes to the important compatibility of this area of H0.
| DCC | SX2 | SX | MFX | |
|---|---|---|---|---|
| Light Function |
. |
. |
||
| Light Function |
. |
. |
||
| Operating sounds |
. |
. |
||
| Horn blast 1 |
. |
. |
||
| Horn blast 2 |
. |
. |
