TRIX 62720

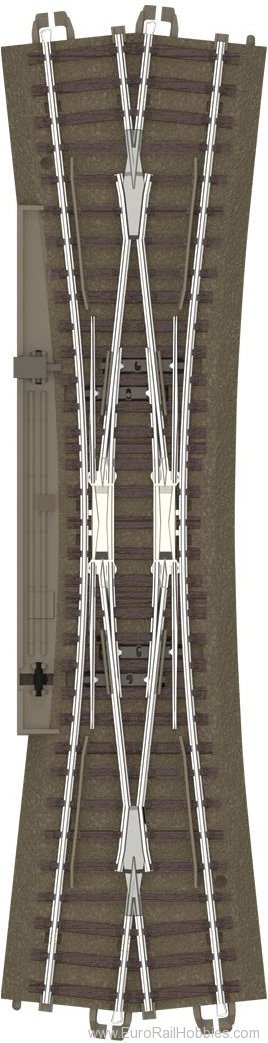

The Trix H0 wide angle double slip switch with a length of 236.1 mm / 9-5/16". Crossing angle of 12.1°. 74491 electric mechanism included. A hand lever is included. Four (4) no. 62071 track sections are required at the end of the turnout (not included with 62720). Two roadbed pieces to fit are included. The 74777 turnout lantern, and the 74467 digital decoder can be installed on this double slip switch. The plug-in connection with the "Click". Set up and take down in a jiffy. Sturdy and long lasting.

Trix C Track is the ideal track for fast setup of a track pattern on a table or on the floor. The low resistance click connection on the ends of the track has especially reliable contact and is especially conductive. The connections are designed to be mechanically very precise and display a high level of their own stability in track sections put together. The running and operating current for a model railroad can be fed to the layout everywhere. The feeder wires are connected to the track using spade connectors at the contact tongues present in each section of track. This results in flexibility for all kinds of model railroad track lines. A track system, which allows constantly new operating adventures on constantly new rail lines!

If you already have a "two-rail" layout, you can benefit from Trix C Track: Use this elegant roadbed track for any expansion. You use the adapter track (62951) for the transitions in the existing area. It allows connections between Trix C Track and conventional Code 83 track.

The low rail profile for Trix C Track is 2.07 mm high and thereby fulfills the standard for Code 83. All H0 locomotives and cars with wheel flanges designed for NEM will run here – and that is practically all new models offered in the last two decades for two-rail systems by various manufacturers! This track thereby contributes to the important compatibility of this area of H0.
