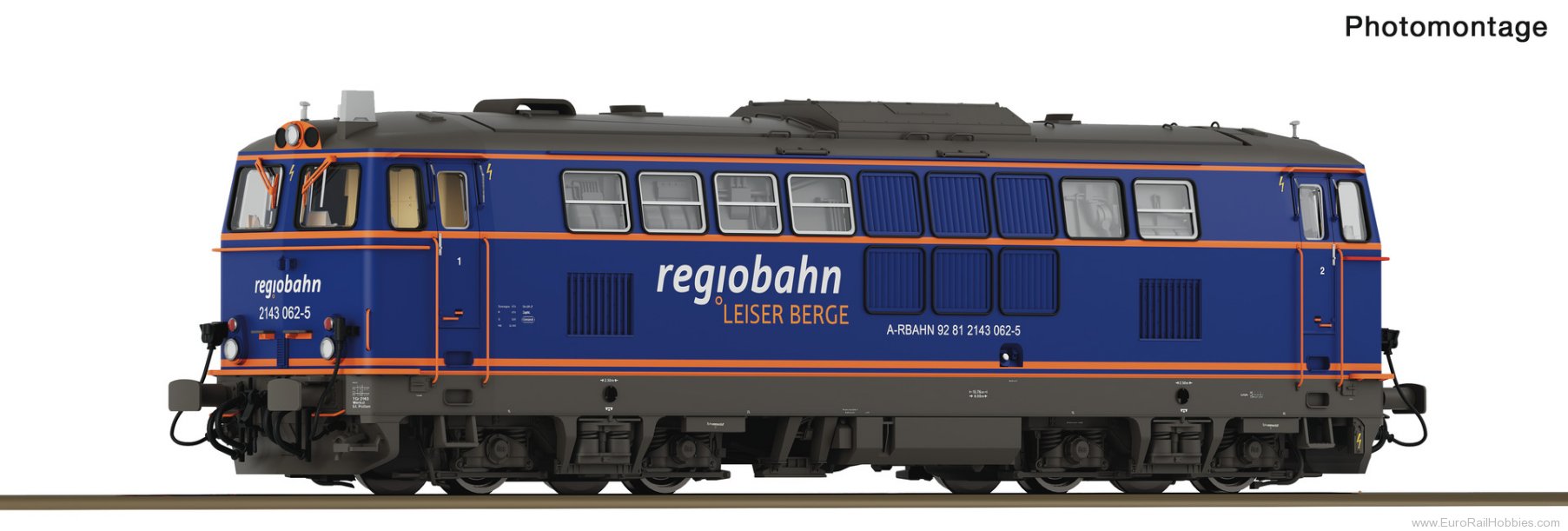

Diesel locomotive 2143 062 of the Regiobahn.
New design!
* Version of the 3rd series with a straight frame
* Regiobahn design
* Free-standing grab rails, some made of metal
* Headlight/tail light switchable with a DIP switch
A large part of the 2143 class locomotive stock consisted of the third production series, which was further divided into subclasses. The so-called 3a class included running numbers 2143.34 – 43, while the 3b class covered 2143.44 – 70. All engines in the third series share several common features: the frame has a straight design and, unlike the first series, is not cranked. The areas around the driver's cab doors have long rain gutters, and the door windows are framed in metal. Likewise, the fuel filling sections were redesigned with different dimensions. After being taken out of service, many locomotives were sold to private railways in Germany and abroad. Some vehicles are now assigned to museum duty, while others remain in loyal service in the infrastructure sector.
General data
| Coupling |
NEM shaft 362 with close coupling mechanism |
| Minimum radius |
358 mm |
| Flywheel |
yes |
| Number of driven axles |
4 |
| Number of axles with traction tyres |
1 |
| Article number |
7300093 |
| EAN |
9005033385415 |
| Scale |
H0 |
| Epoch |
VI |
| Railway Company |
EINSTELLER |
Electrical
| Motor |
5-pole motor |
| Head light |
3 headlight, dependent on the direction of travel/2 tail lights, dependent on the direction of travel |
| LED head light |
yes |
| Additional light function |
yes |
| Control |
DC Analog |
| Interface |
Electrical interface for traction units PluX22 |
Measurements
| Length over buffer |
181 mm |
