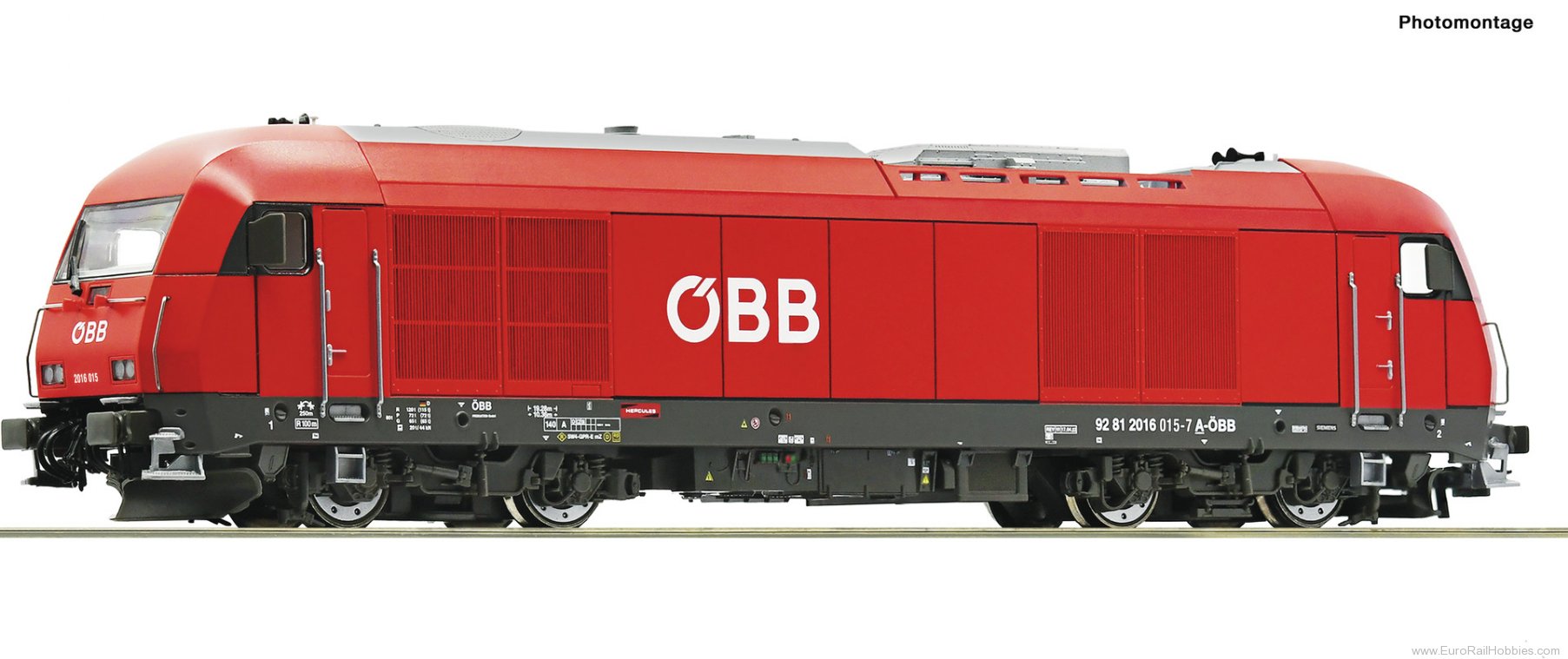

Diesel locomotive 2016 015 of the Austrian Federal Railways.
* Attached exterior mirrors in folded and extended positions
* Extra applied grab rails, windscreen wipers and UIC sockets
* Colour-contrasting brake discs
* With PluX22 interface and LED headlight
* Headlight/tail light switchable with a DIP switch
Like the 'Taurus' locomotives, the Class 2016 was also given a classical name—'Hercules'—in reference to the hero of Greek mythology known for his superhuman strength.
Between 2002 and 2004, a total of 100 diesel-electric universal locomotives were put into service by the ÖBB. The locomotive supports both multiple traction and push-pull operations. With an engine output of 2,000 kW and a top speed of 140 km/h, it is suitable for mainline service. Thanks to its 20-ton axle load, it can also be deployed on branch lines
General data
| Coupling |
NEM shaft 362 with close coupling mechanism |
| Minimum radius |
358 mm |
| Flywheel |
yes |
| Number of driven axles |
4 |
| Number of axles with traction tyres |
1 |
| Article number |
7300087 |
| EAN |
9005033384500 |
| Scale |
H0 |
| Epoch |
VI |
| Railway Company |
�BB |
Electrical
| Head light |
3 headlight, dependent on the direction of travel/2 tail lights, dependent on the direction of travel |
| LED head light |
yes |
| Additional light function |
yes |
| Control |
DC Analog |
| Interface |
Electrical interface for traction units PluX22 |
Measurements
| Length over buffer |
221 mm |
