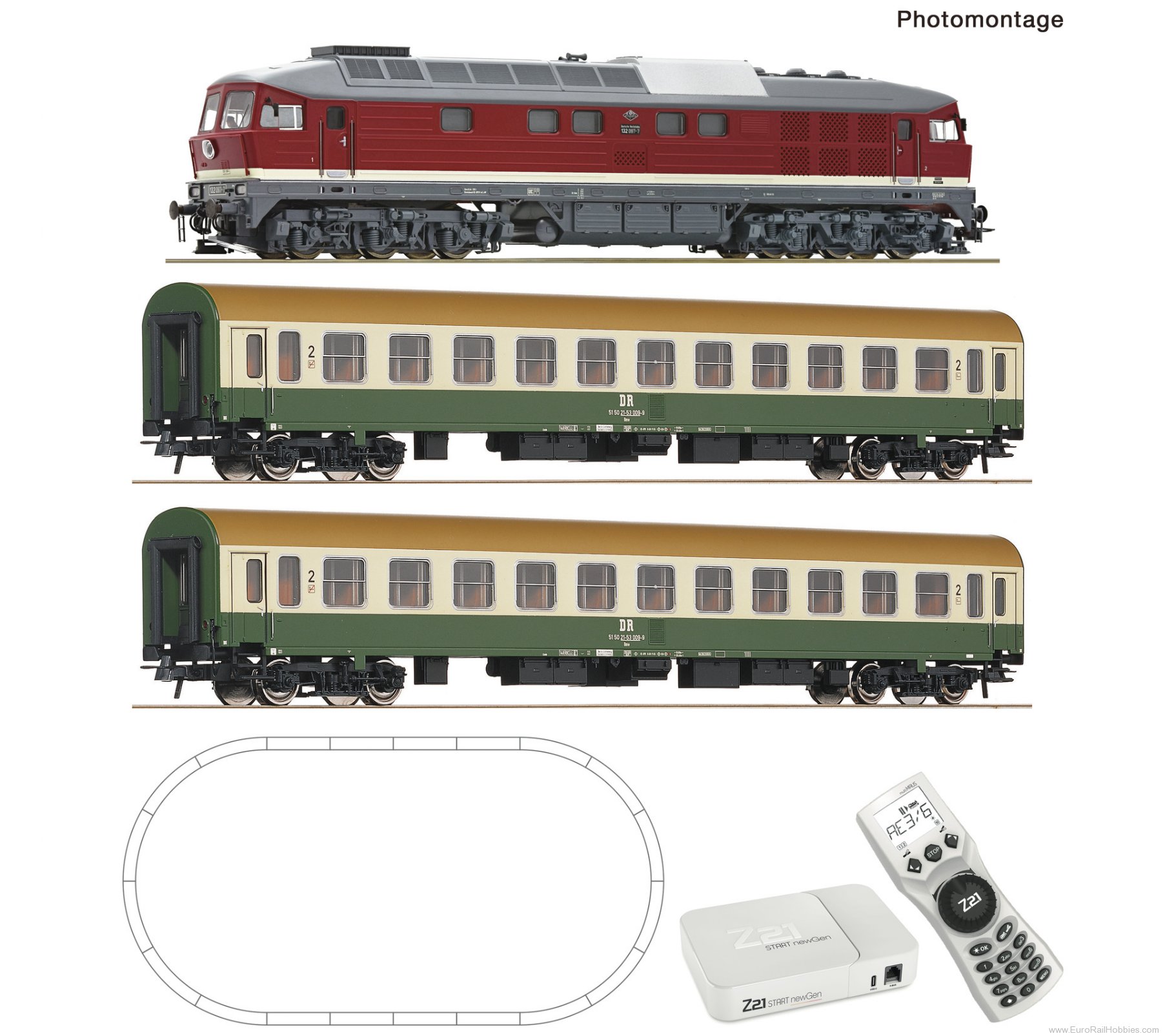

Z21 START newGen digital set: Diesel locomotive class 132 with express train of the railway company of the German Democratic Republic (DR).
Contents:
1 diesel locomotive class 132
2 'Halberstadt' express train coaches, length scale 1:100
1 Z21 START newGen
1 Z21 multiMAUS
1 mains plug
1 conductor's whistle
ROCO GEOLINE track oval:12 curved tracks R3, 7 straight tracks G200, 1 connecting line (G200)
Space requirement: approx. 180 x 100 cm
Information Z21 START newGen
Features
* Controls up to 9,999 DCC locomotive decoders
* Controls up to 2,048 DCC turnout decoders
* RailCom receiver
* Software updates via new update portal (more information will follow)
Connections:
* X-BUS
* USB-C
Technical informations
* Input voltage: 12-24 V
* Output voltage corresponds to 1 V below input voltage
* Output current: max. 3 A
* Analog locomotives: Not controllable
* Maximum number of trains: 100 vehicles simultaneously
* DCC locomotive decoder
* 14/28/128 speed steps
* F0 to F31
* POM read & write
* Main track and programming track are on one output on the Z21 START newGen, as known from the z21start.
RailCom is a registered trademark of Lenz Elektronik GmbH, Gie�en.
General data
| Coupling |
NEM shaft 362 without close coupling mechanism |
| Minimum radius |
358 mm |
| Flywheel |
yes |
| Number of driven axles |
6 |
| Number of axles with traction tyres |
2 |
| Article number |
5110019 |
| EAN |
9005033395636 |
| Scale |
H0 |
| Epoch |
IV |
| Railway Company |
DR |
Electrical
| Head light |
3 headlight, dependent on the direction of travel/2 tail lights, dependent on the direction of travel |
| LED head light |
yes |
| Control |
DC Digital |
| Interface |
Electrical interface for traction units PluX22 |
| Digital decoder |
PluX16 |
Measurements
| Length over buffer |
765 mm |
