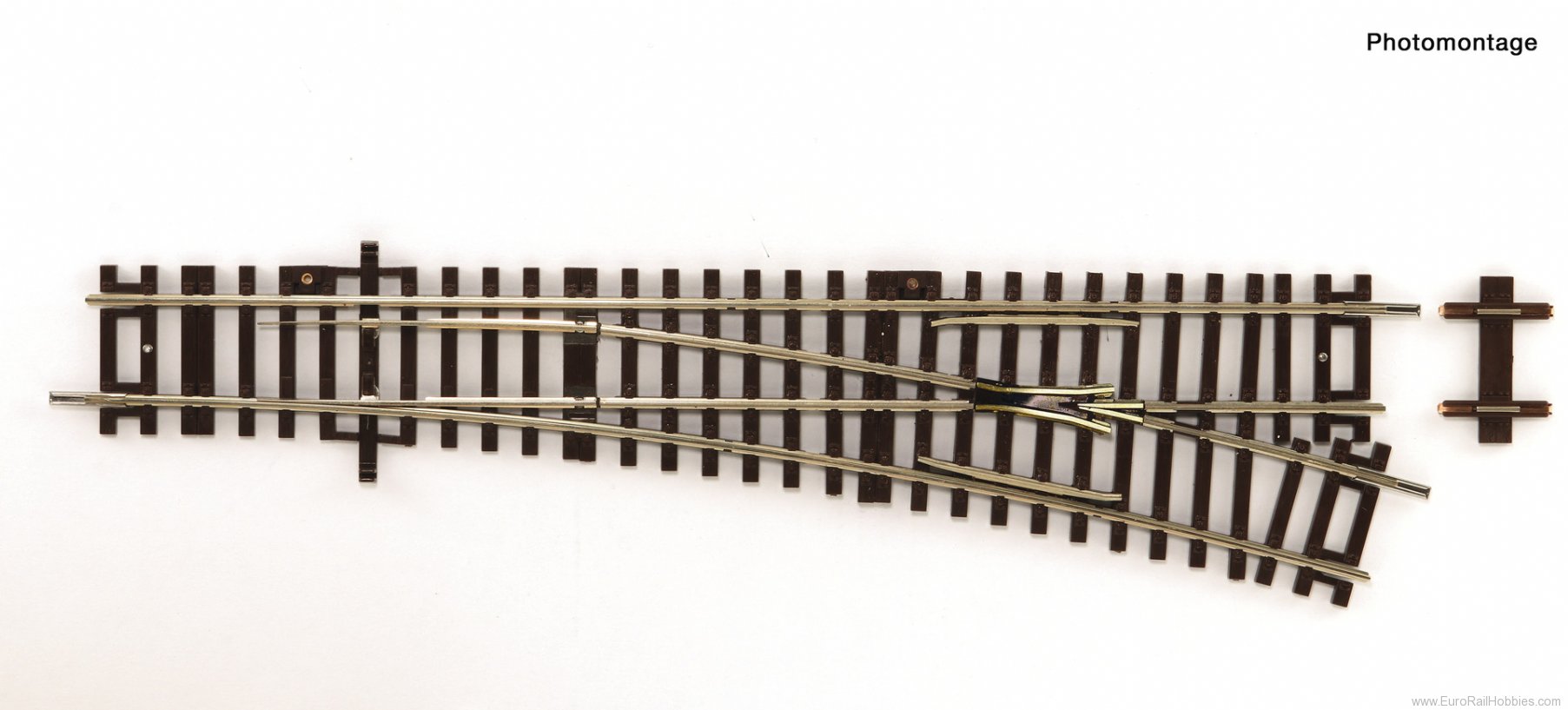

Turnout right hand Wr15, without turnout mechanism.
Length 230 mm (standard length), branch angle 15°, branch radius 873.5 mm, frog angle 10.8°.
An 8-mm spacer element (D8) is included for diagonal installation.
Suitable turnout mechanisms: 40296, 40298 or 10030.
â– Newly designed frog pieces ensure a smooth crossing
â– Turnout opening/width in the frog piece area according to NEM standards
| Specifications: |
| Measurements |
| Rail profile height |
|
2.1 mm |
|
|
