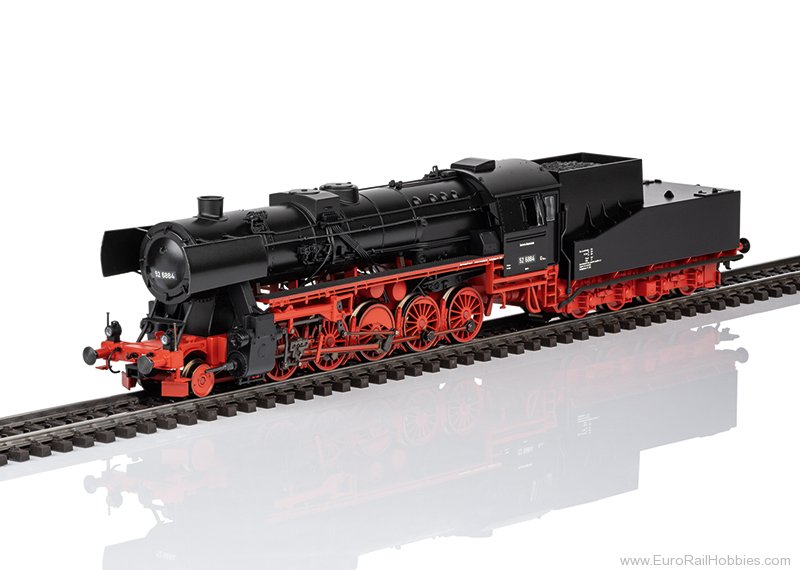

Prototype: German Federal Railroad (DB) class 52 heavy freight steam locomotive with a type K4 T30 solid-frame tender. Black/red basic paint scheme. Witte smoke deflectors. Pilot truck with solid wheels. Loco road number 52 6884. The loco looks as it did around 1951.
Highlights
Model: The loco has an mfx+ digital decoder and extensive sound functions. It also has a controlled high-performance motor with a flywheel, mounted in the boiler. 5 axles driven. Traction tires. The locomotive and solid-frame tender are constructed mostly of metal. Prepared for installation of a 7226 smoke generator kit. The dual headlights change over with the direction of travel. These and the smoke generator kit that can be installed in the loco will work in conventional operation and can be controlled digitally. The cab lighting is also digitally controllable. Lighting with maintenance-free warm white LEDs. a buffer capacitor is fitted. Close coupling with a guide mechanism between the loco and tender. The rear of the tender and front of the loco have close couplers with NEM pockets and guide mechanisms. The buffer height conforms to NEM specifications. The minimum radius for operation is 360 mm / 14-3/16". Protective piston sleeves, brake hoses, and imitation screw couplers are included.
Length over buffers 26.4 cm / 10-3/8".
Digital Functions
| ControlUnit | MobileStation | MobileStation 2 | CentralStation 1/2 | CentralStation 3/2* Mobile Station 2** |
|
|---|---|---|---|---|---|
| Headlight(s) | * | * | * | * | * |
| Smoke generator contact | * | * | * | * | * |
| Steam locomotive op. sounds | * | * | * | * | * |
| Locomotive whistle | * | * | * | * | * |
| Direct control | * | * | * | * | * |
| Sound of squealing brakes off | * | * | * | * | |
| Engineer's cab lighting | * | * | * | * | |
| Whistle for switching maneuver | * | * | * | * | |
| air Pump | * | * | * | * | |
| Letting off Steam | * | * | * | ||
| Sound of coal being shoveled | * | * | * | ||
| Tipping grate | * | * | * | ||
| Injectors | * | * | * | ||
| Water Pump | * | * | * | ||
| Sanding | * | * | * | ||
| Replenishing coal | * | * | * | ||
| Replenishing water | * | ||||
| Replenishing sand | * | ||||
| "Switcher Double ""a"" Light" | * | ||||
| Switching range + switching light | * | ||||
| Generator Sounds | * | ||||
| Special sound function | * | ||||
| Rail Joints | * | ||||
| Safety Valve | * | ||||
| Sound of Couplers Engaging | * | ||||
| Bell | * |
* New features of the Central Station 2 (Part No. 60213, 60214 or 60215) with the software update 4.2
** New features of the Mobile Station 2 (Part No. 60657/66955) with the Software Update 3.55
