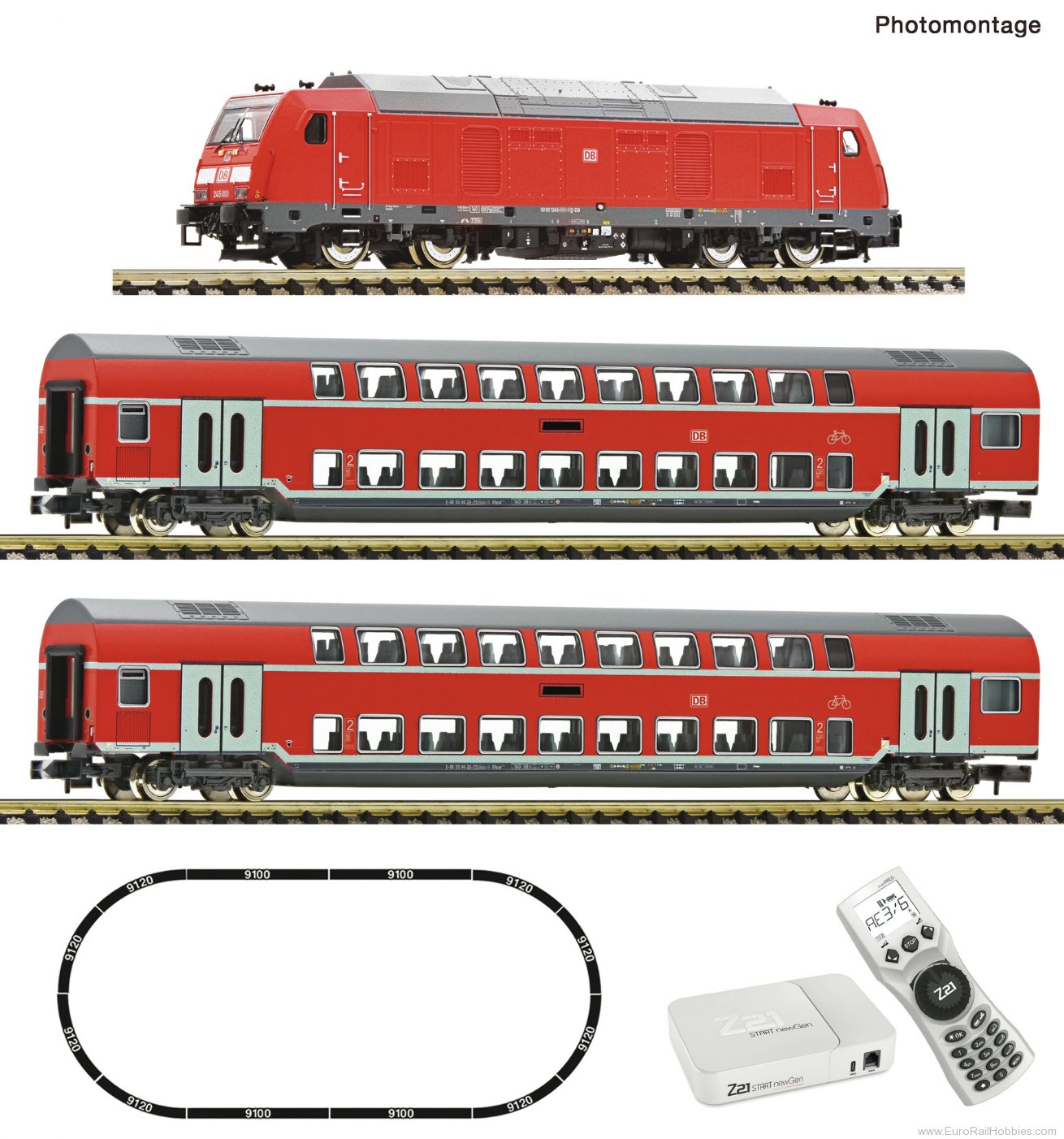

Z21 START newGen digital set: Diesel locomotive class 245 with passemger train, of the Deutsche Bahn.
Contents:
1 digitally controlled Diesel locomotive class 245
2 double-deck coaches
1 Z21 START newGen
1 Z21 multiMAUS
1 plug-in power supply
� Suitable for use with the Z21 wireless Z21 WLANMAUS
Gravel bed tracks for an oval track with a radius R1 (4 x 9100, 8 x 9120), electrical connection material.
Size of track layout: 85 cm x 40 cm.
Information Z21 START newGen
Features
� Controls up to 9,999 DCC locomotive decoders
� Controls up to 2,048 DCC turnout decoders
� RailCom receiver
� Software updates via new update portal (more information will follow)
Connections:
� X-BUS
� USB-C
Technical informations
� Input voltage: 12-24 V
� Output voltage corresponds to 1 V below input voltage
� Output current: max. 3 A
� Analog locomotives: Not controllable
� Maximum number of trains: 100 vehicles simultaneously
� DCC locomotive decoder
� 14/28/128 speed steps
� F0 to F31
� POM read & write
� Main track and programming track are on one output on the Z21 START newGen, as known from the z21start.
RailCom is a registered trademark of Lenz Elektronik GmbH, Gie�en.
General data
| Coupling |
NEM shaft 355 with close coupling mechanism |
| Minimum radius |
192 mm |
| Flywheel |
yes |
| Traction tyres |
2 |
| Number of driven axles |
4 |
| EAN |
9005033392741 |
| Scale |
N |
| Epoch |
VI |
| Railway Company |
DB-AG |
Electrical
| Motor |
5-pole motor |
| Head light |
3 headlight, dependent on the direction of travel/2 tail lights, dependent on the direction of travel |
| LED head light |
yes |
| Additional light function |
yes |
| Control |
DC Digital |
| Interface |
Electrical interface for traction units Next18 |
| Digital decoder |
Next18 |
Measurements
| Length over buffer |
452 mm |
