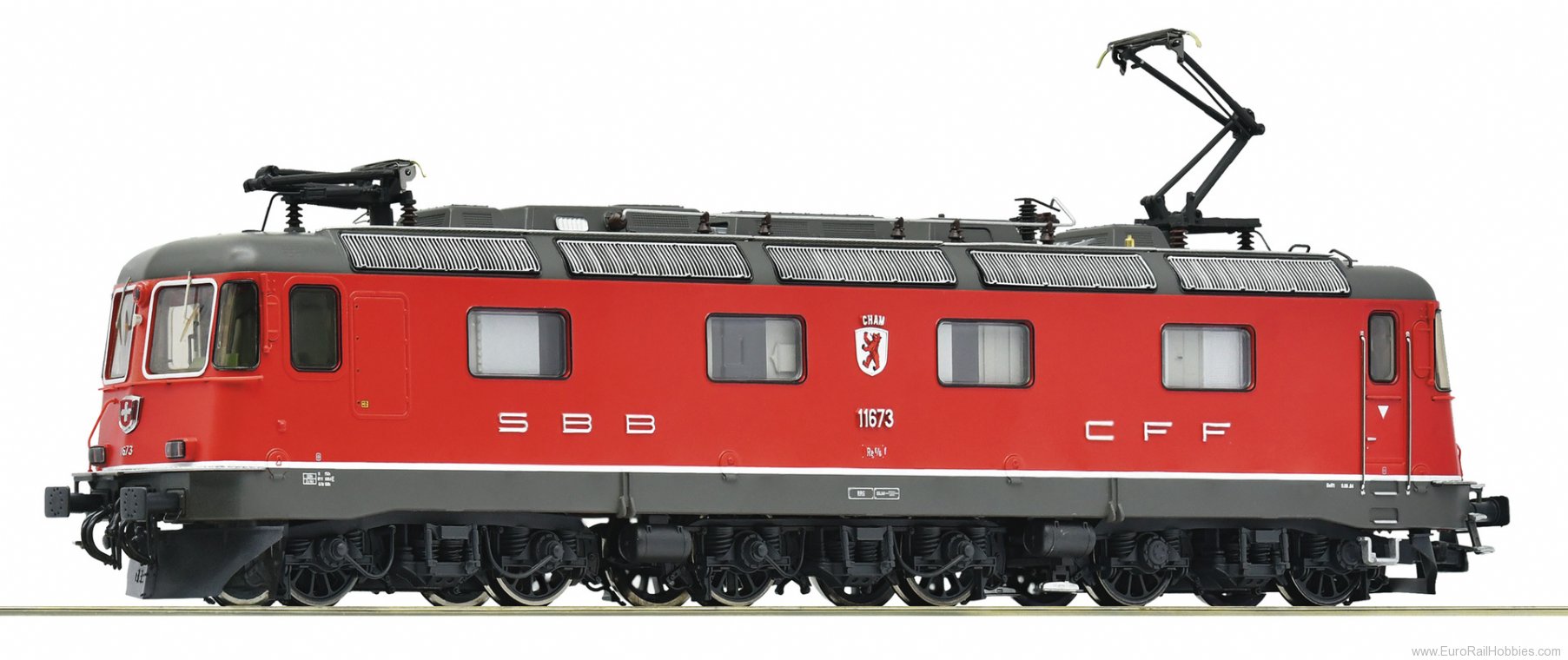

Electric locomotive Re 6/6 11673 of the Swiss Federal Railways.
* Featuring the “Cham” emblem
* With square lamps and air conditioning
* Inset, finely-detailed etched parts such as ventilation grilles and windscreen wipers
* In digital mode with light functions according to the Swiss prototype
The Re 6/6 are six-axle electric locomotives of the Swiss Federal Railways that were purchased as a replacement for the Ae 6/6 for heavy-duty service on the Gotthard. With an hourly output of 7,850 kW and a top speed of 140 km/h, the Re 6/6, which first entered service in 1972, is still one of the most powerful locomotives in Switzerland today.
The Re 6/6 11673 "Cham" was officially inaugurated on 12 May 1979. After almost 40 years of service, it unfortunately had an accident on 13 May 2015 during a side collision at Erstfeld station, after which the locomotive was decommissioned and broken up. However, the "Cham" emblem of the Re 6/6 11673 has lived on since then on the Re 4/4 11278, preserving it.
General data
| Coupling |
NEM shaft 362 without close coupling mechanism |
| Minimum radius |
358 mm |
| Flywheel |
yes |
| Number of driven axles |
4 |
| Number of axles with traction tyres |
1 |
| Article number |
7510105 |
| Scale |
H0 |
| Epoch |
V-VI |
| Railway Company |
SBB |
Electrical
| Motor |
5-pole motor |
| Head light |
Light changeover true to the Swiss original. |
| LED head light |
yes |
| Additional light function |
yes |
| Control |
DC Digital |
| Interface |
Electrical interface for traction units PluX22 |
| Digital decoder |
PluX22 |
| Sound |
yes |
Measurements
| Length over buffer |
222 mm |
